x86 & x64 Registers

The main tools to write programs in x86 assembly are the processor registers. The registers are like variables built in the processor. Using registers instead of memory to store values makes the process faster and cleaner. Note that the rules described here are more suggestions than strict rules. Some operations need absolutely some kind of registers but most of them you can use freely. This freedom however may be limited when if you are linking your code with another programming language since then the conventions of the compiler you are using may apply.

Note that this tutorial mainly deals with x86 registers, so some x64 registers will be mentioned partly only. Also, this page is meant to give a general overview on the important registers, so some registers might not be included. Some CPU families might even have added some extra registers not mentioned here.

Overview

Here is a list of the available registers on the i386 and higher processors. This list shows the 32 bit registers. Most of them can be broken down to 16 or even 8 bits register.

General Registers

As the title says, general register are the one we use most of the time Most of the instructions perform on these registers. They all can be broken down into 16 and 8 bit registers. Note that the 64-bit parts can solely be accessed with 64-bit CPUs.

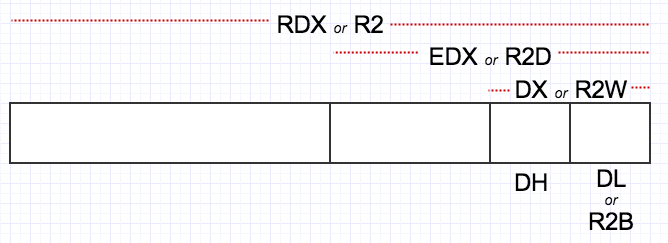

The "H" and "L" suffix on the 8 bit registers stand for high byte and low byte. The following picture taken from the NASM tutorial by Ray Toe may help understanding it better:

With this out of the way, let's see their individual main use

The previous note can be explained by the following code:

mov eax, 0xFFFFFFFF     ; EAX = 0xFFFFFFFF (RAX = 0x00000000FFFFFFFF)
mov ax, 0x1111          ; EAX = 0xFFFF1111
mov al, 0xFF            ; EAX = 0xFFFF11FF

; alternative to above code:
mov eax, 0xFFFFFFFF     ; EAX = 0xFFFFFFFF
mov ah, 0x11            ; EAX = 0xFFFF11FF

Segment Registers

Segment registers hold the segment address of various items. They are only available in 16 values. They can only be set by a general register or special instructions. Some of them are critical for the good execution of the program and you might want to consider playing with them when you'll be ready for multi-segment programming

Indexes and Pointers

Indexes and pointer and the offset part of and address. They have various uses but each register has a specific function. They some time used with a segment register to point to far address (in a 1Mb range).

The EFLAGS Register

The EFLAGS register holds the state of the processor. It is modified by many intructions and is used for comparing some parameters, conditional loops and conditionnal jumps. Each bit holds the state of specific parameter of the last instruction. Here is a listing :

Note: in x64 Assembly, this register is called RFLAGS

Floating Points

The x86_64 architecture comes with an x87 Floating Point Unit (FPU) which can make use of 8 registers and some floating point instructions. The registers are called from st0 to st7 and are each 80-bit long while they may preserve 32-bit or 64-bit values (float and double in C). FPU instructions generally will pop the first two items off the stack, act on them, and push the answer back on to the top of the stack.

FPU Instructions (in NASM)

The following table shows some basic instructions for the FPU. Note that this is not a full instruction list.

For more on this, read X86 Assembly/Floating Point.

Undocumented registers

There are registers on the 80386 and higher processors that are not well documented by Intel. These are divided in control registers, debug registers, test registers and protected mode segmentation registers. AFAIK, the control registers, along with the segmentation registers, are used in protected mode programming, all of these registers are available on 80386 and higher processors except the test registers that have been removed on the pentium. Control registers are CR0 to CR4, Debug registers are DR0 to DR7, test registers are TR3 to TR7 and the protected mode segmentation registers are GDTR (Global Descriptor Table Register), IDTR (Interrupt Descriptor Table Register), LDTR (Local DTR), and TR.

x64 registers

The x64 architecture came not only with a 64-bit extension of the existing 32-bit registers, but also with a newer set of registers. Those newer registers are as follwoing:

x64 C/++ Calling Convention

• The first four integer or pointer parameters are passed in the rcx, rdx, r8, and r9 registers.
• The first four floating-point parameters are passed in the first four SSE registers, xmm0, xmm1, xmm2, xmm3.
• The caller reserves space on the stack for arguments passed in registers. The called function can use this space to spill the contents of registers to the stack.
• Any additional arguments are passed on the stack.
• An integer or pointer return value is returned in the rax register, while a floating-point return value is returned in xmm0.
• rax, rcx, rdx, r8-r11 are volatile.
• rbx, rbp, rdi, rsi, r12-r15 are nonvolatile.
